BreezSlim Ventilation Fans - SLM50-110LED-C - 50/80/110 CFM Fan/Dimmable LED Light
High Speed Adjustable

Home / Products / Slim Series / SLM50-110LED-C

  • SLM50-110LED-C

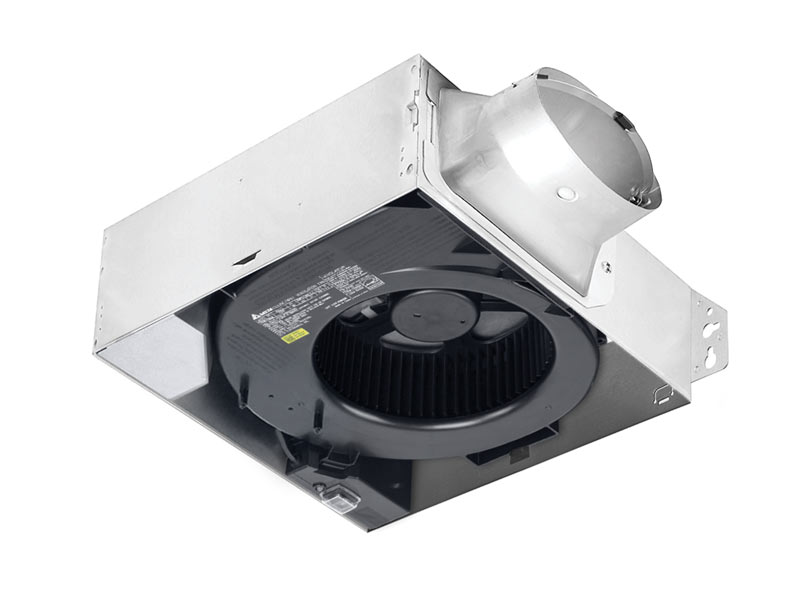

  • SLM50-110LED-C motor
  • SLM50-110LED-C grille
  • SLM80-110D green LED indicator light
  • SLM50-110LED-C high speed adjustable
  • SLM50-110LED-C
  • SLM50-110LED-C grille

  • energyefficient logo
  • HVI logo
  • UL logo
  • CA24 logo
  • ASI logo
  • ASI logo

  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • UL approved for ceiling and wall mount installation, and it can fit in a 4" wall
  • 4" Oval Duct
  • SLM50-110LED-C can fit with Ceiling Radiation Damper SMT-CRD2
  • Perfectly quiet operation at <0.3 sones (50 CFM), 0.4 sones (80CFM), 1.3 sones (110CFM)
  • Adjustable high speed 50CFM, 80CFM or 110CFM
  • Energy efficiency at 8.3 CFM/Watt (50CFM), 8.8 CFM/Watt (80CFM), 6.6 CFM/Watt (110CFM)
  • 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included
  • Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy
  • Turn the power switch on/off to operate on/off, LED indicator will be green when power is on
  • Annual energy cost for 24/7 operation is approximately $6.31* (50CFM), $9.46* (80CFM), $17.35* (110CFM)
  • *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary.

Super Low Profile. Super Low Energy Consumption.
Delta BreezSlim SLM50-110LED-C is suitable for ceiling or sidewall installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 1.3 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 16.5 Watts with efficiency rating of 6.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

SLM50-110LED-C - 50/80/110 CFM Fan/Dimmable LED Light with High Speed Adjustable

Fan Speed Full Speed
Static Pressure (inches w.g.) 0.1 0.25 0.1 0.25 0.1 0.25
Air Flow (CFM) 50 47 80 80 110 106
Sones <0.3 0.8 0.4 1.1 1.3 1.5
Power Consumption (Watts) 6 9.5 9.0 14.5 16.5 24
Energy Efficiency (CFM/Watts) 8.3 4.9 8.8 5.5 6.6 4.4
Current (Amps) 0.6 Max
Power Rating (V/Hz) 120/60
Dimmable LED Light (Watts) 13

Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.

Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.

Download Revit File
