The ventilation fan shall be the Delta Breez model FRS200, ENERGY STAR qualified, with an ECM motor engineered to run continuously for a minimum of 70,000 hours. It shall have an airflow rating ranging from 30 to 200 CFM, as certified by the Home Ventilating Institute (HVI) at 0.2” static pressure. The fan's power consumption shall not exceed 33.0 watts, with an efficiency rating of at least 6.0 CFM/watt at 0.2” static pressure. The housing shall be insulated to reduce condensation and noise.

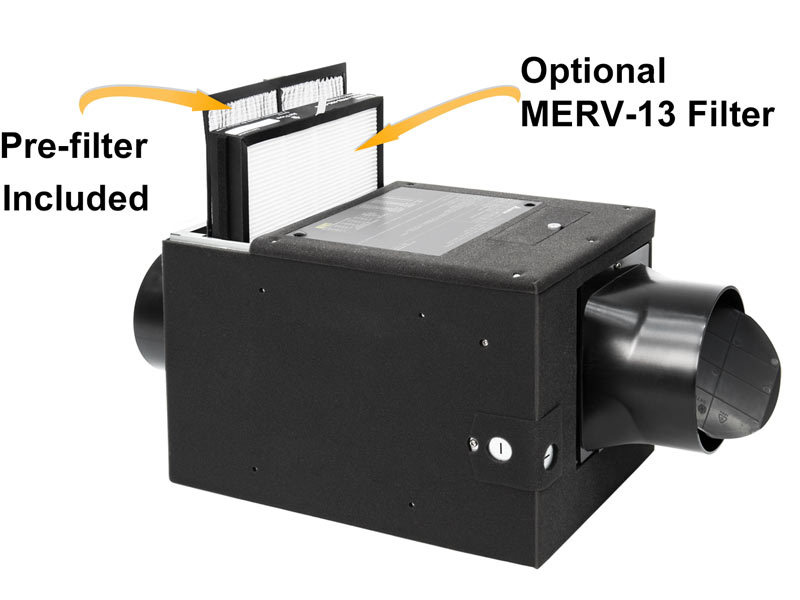

Performance with pre-filter installed
Static Pressure (inch w.g.) | 0.2 | |||||||||
Air Flow (CFM) | 200 | 170 | 150 | 130 | 110 | 90 | 70 | 50 | 40 | 30 |
Power Consumption (Watts) | 33.0 | 23.5 | 18.8 | 16.2 | 11.7 | 10.0 | 8.0 | 6.3 | 5.4 | 4.7 |
Energy Efficiency (CFM/Watts) | 6.0 | 7.2 | 7.9 | 8.0 | 9.4 | 9.0 | 8.8 | 7.9 | 7.4 | 6.4 |
Static Pressure (inch w.g.) | 0.4 | |||||||||
Air Flow (CFM) | 197 | 170 | 150 | 129 | 110 | 90 | 70 | 47 | 40 | 30 |
Power Consumption (Watts) | 42.0 | 34.9 | 29.0 | 22.5 | 19.5 | 15.9 | 13.0 | 10.5 | 9.2 | 8.5 |
Energy Efficiency (CFM/Watts) | 4.7 | 4.9 | 5.2 | 5.7 | 5.6 | 5.7 | 5.3 | 4.5 | 4.4 | 3.5 |
Static Pressure (inch w.g.) | 0.2 | |||||||||
Air Flow (CFM) | 200 | 170 | 150 | 130 | 110 | 90 | 70 | 50 | 40 | 30 |
Power Consumption (Watts) | 42.0 | 29.3 | 22.7 | 19.1 | 14.1 | 11.4 | 8.5 | 7.2 | 6.1 | 5.2 |
Energy Efficiency (CFM/Watts) | 4.8 | 5.8 | 6.6 | 6.8 | 7.8 | 7.9 | 8.2 | 7.0 | 6.6 | 5.8 |
Static Pressure (inch w.g.) | 0.4 | |||||||||
Air Flow (CFM) | 160 | 160 | 150 | 130 | 110 | 90 | 70 | 50 | 40 | 29 |
Power Consumption (Watts) | 35.2 | 35.2 | 33.6 | 27.7 | 21.7 | 17.7 | 12.8 | 11.8 | 9.8 | 9.0 |
Energy Efficiency (CFM/Watts) | 4.6 | 4.6 | 4.6 | 4.7 | 5.1 | 5.1 | 5.5 | 4.2 | 4.1 | 3.2 |
Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.
Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.
