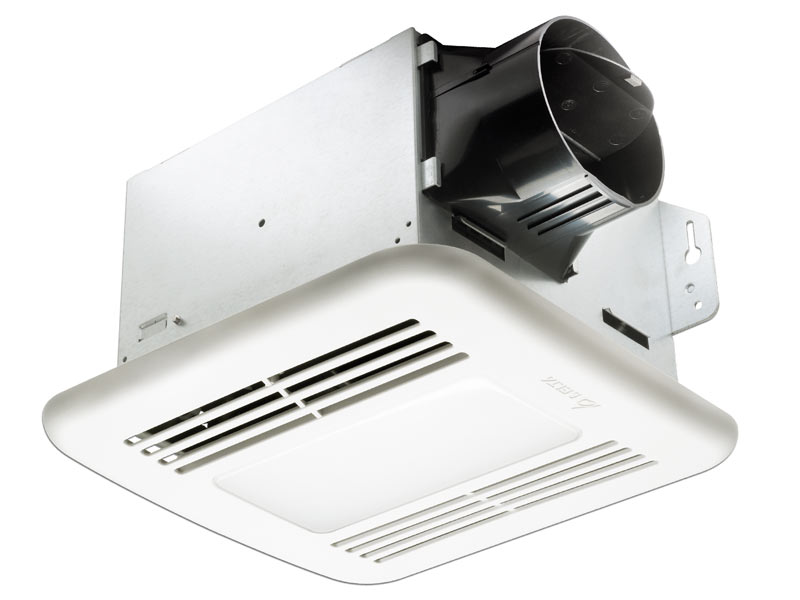

BreezGreenBuilder GBR80HLED -- 80 CFM Fan/Dimmable LED Light with Humidity Sensor

Home / Products / GreenBuilder / GBR80HLED

GBR80HLED
  • GBR80HLED
  • GBR80HLED grille
  • GBR80HLED LED indicator
  • GBR80HLED LED indicator
  • GBR80HLED knob
  • GBR80HLED
  • GBR80HLED

GreenBuilder logo

  • ENERGY STAR® qualified with Brushless DC Motor technology
  • Quite operation at 0.8 Sones
  • Ceiling mount ventilating Fan/Dimmable LED Light with humidity sensor rated for continuous running
  • 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included.
  • LED life is 30,000 hours (compare with 10,000-hour CFL life)
  • Main light output: 850 Lumens; 3000K; 90 CRI for high color accuracy and compliance with CEC JA8 Title 24 requirements
  • For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed (80 CFM). When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0 or 50 CFM)
  • Energy efficiency at 7.2 CFM/Watt
  • Blue and amber LED indicator lights to show humidity sensor and full speed modes
  • Annual energy cost for 24/7 operation is approximately $11.57*
  • *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary

  • energyefficient logo
  • HVI logo
  • UL logo
  • CA24 logo
  • ASI logo
  • LED Dimmable logo
  • the quietest fan, low noise

The Builder’s Choice for Green Construction.
Delta BreezGreenBuilder ventilation fans mark a new achievement in bathroom ventilation for green construction. Built upon market-leading energy efficiency, exceptionally low power consumption and quiet operation, the BreezGreenBuilder series offers a Dimmable LED Light option as well as humidity sensing option.

BreezGreenBuilder stays true to what has made the GreenBuilder series a winning value proposition for builders and contractors: a super reliable Delta DC brushless motor, a compact lightweight design for quick installation coupled with sound and flow ratings that far surpass building requirements...all at an affordable price.

GBR80HLED - 80 CFM Fan/Dimmable LED Light w/ Humidity Sensor

Continuous low speed Full speed
Static Pressure (inches w.g.) 0.1 0.25 0.1 0.25
Air Flow (CFM) 50 33 80 63
Sones 0.5 1.0 0.8 1.5
Power Consumption (Watts) 4.4 6.0 11 13
Energy Efficiency (CFM/Watts) 11.3 5.5 7.2 4.8
Current (Amps) 0.33 Max
Power Rating (V/Hz) 120/60
LED Main Light (Watt) 13

Digital Files for Revit Users
For the convenience of the Architectural and Engineering professionals who rely on quality BIM content to deliver their projects, Delta Breez offers powerful functionality in our easy to use Revit Families (.rfa’s). Download them today for free.

Families Include:
• Accurately Modeled Geometry
• Revit Electrical Connector
• Revit Duct Connector
• Type Catalogs Files (.txt) for small file size.
• Face-Hosted for Easy Placement.

Download Revit File
