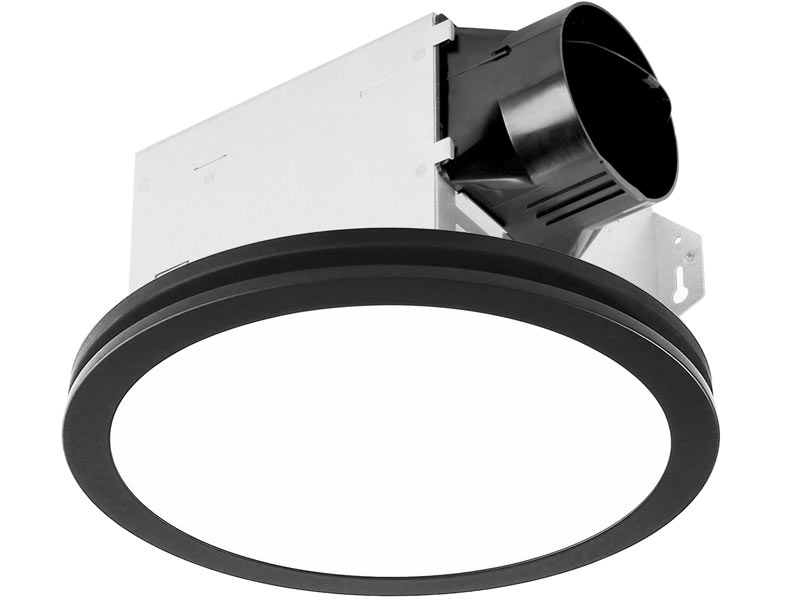

BreezIntegrity - 80RLED-ADJ-MB - 80 CFM Fan/LED Edge-Lit, Flat Round Panel with Adjustable Color Temperature

Home / Products / BreezIntegrity / 80RLED-ADJ-MB

80RLED-ADJ-MB
  • 80RLED-ADJ-MB
  • 80RLED-ADJ-MB grille
  • 80RLED-ADJ-MB housing
  • 80RLED-ADJ-MB grille
Integrity
  • ENERGY STAR® qualified with innovative brushless DC motor technology
  • Quiet operation at 1.5 sones
  • UL approved for ceiling mount installation
  • 13-Watt Dimmable LED light included (equivalent to a 60-Watt incandescent bulb). Dimmer switch not included.
  • Main light output: 1000 Lumens; 80 CRI for high color accuracy
  • Adjustable color temperatures of 2700K, 4000K, and 5000K for the perfect ambiance
  • LED life is 30,000 hours (compare with 10,000-hour CFL life)
  • Energy efficiency at 7.2 CFM/Watt
  • Annual energy cost for 24/7 operation is approximately $12.10*
  • *Calculations based upon U.S. average retail electricity and HVI testing labs. Actual results may vary

  • energyefficient logo
  • LED Dimmable logo
  • HVI logo
  • UL logo
  • CA24 logo
  • ASI logo

Ventilation fan shall be Delta Breez model 80RLED-ADJ-MB; ENERGY STAR qualified with DC brushless motor engineered to run continuously for a minimum 70,000 hours ; airflow rating of 80 CFM and loudness rating of 1.5 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 11.5 Watts with efficiency rating of 7.2 CFM/Watt at 0.1” static pressure; motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI protected branch circuit wiring.

80RLED-ADJ-MB - 80 CFM Fan/LED Edge-Lit, Flat Round Panel w/ Adjustable Color Temperature

Static Pressure (inches w.g.) 0.1 0.25
Air Flow (CFM) 80 56
Sones 1.5 1.5
Power Consumption (Watts) 11.5 11.5
Energy Efficiency (CFM/Watts) 7.2 6.2
Current (Amps) 0.14 Max
Power Rating (V/Hz) 120/60
LED Module (Watts) 13
